Description
Basic | ||||||

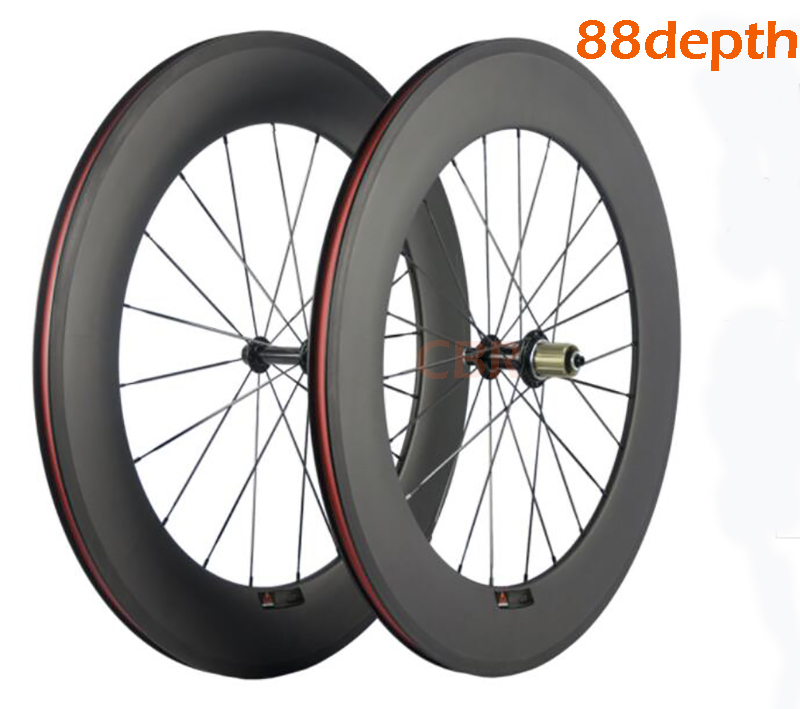

Item #:88depth carbon wheels | Material: Toray T700 Carbon Fiber | |||||
Rim Type: Tubeless/clincher | Warranty: 2 Years | |||||
Dimension | ||||||
Size: 700C | OD: 633mm | |||||
ERD: 468mm | Spoke Hole Dia.: 4.5mm /2.5MM /2:1 | |||||

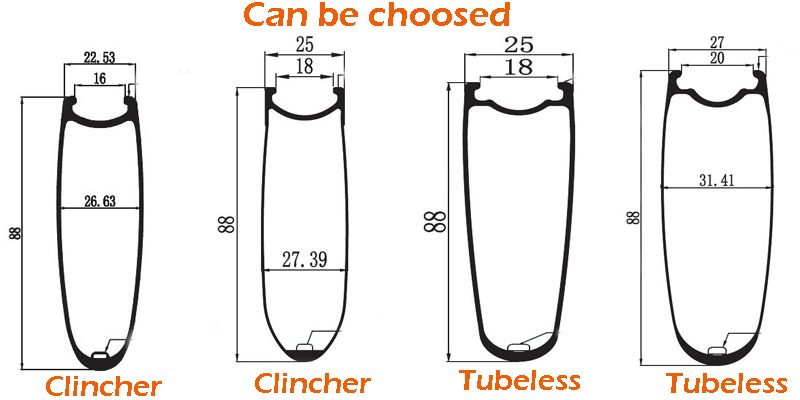

depth: 88mm | width:23/25/27mm | |||||

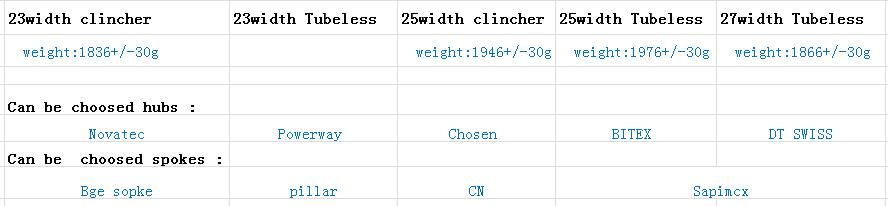

Valve Hole Dia.: 6.5mm | weight: The weight is used R13 hub+ pillar1432 sopkes (below ) | |||||
Assembly Hole Dia.: 7.5mm | Hole count: 10-36 | |||||
Recommendation | ||||||
Tire Size:20.5/ 23 /25/27 | Max Spoke Tension: 130kgf | |||||
Weight Limit: 150kg | Max Tire Pressure: 120psi-140PSI | |||||
Appearance | ||||||
Weave: UD / 3K/12k | Finish: Matte / Glossy | |||||
