| Basic | ||||||

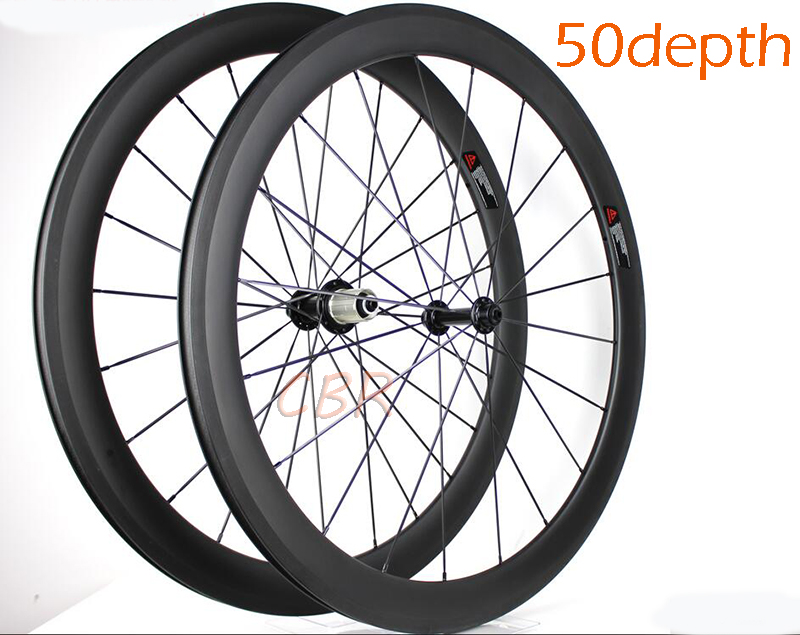

| Item #:50depth carbon wheels | Material: Toray T700 Carbon Fiber | |||||
| Rim Type: Tubeless/clincher | Warranty: 2 Years | |||||
| Dimension | ||||||
| Size: 700C | OD: 633mm | |||||
| ERD: 544mm | Spoke Hole Dia.: 4.5mm /2.5MM /2:1 | |||||

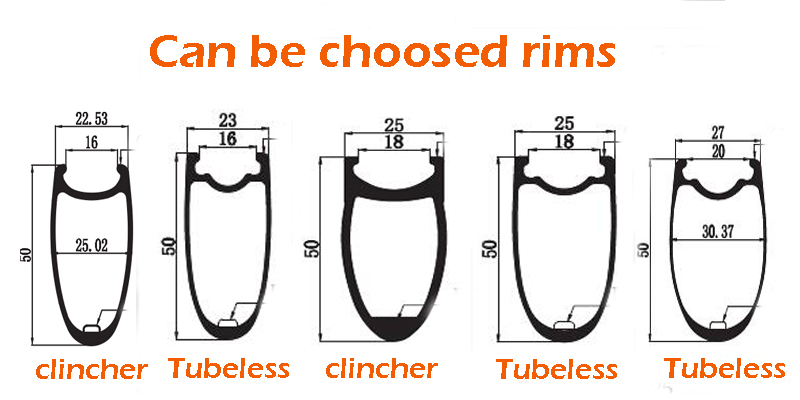

| depth: 50mm | width:23/25/27mm | |||||

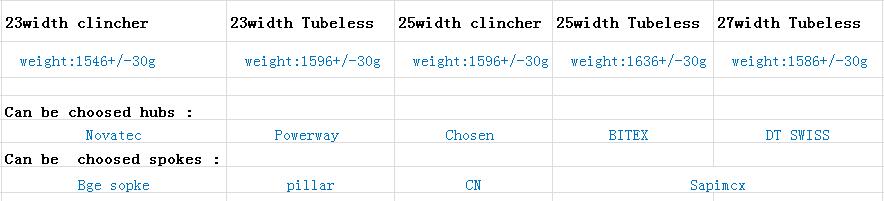

| Valve Hole Dia.: 6.5mm | weight: The weight is used R13 hub+ pillar1432 sopkes (below ) | |||||
| Assembly Hole Dia.: 7.5mm | Hole count: 10-36 | |||||
| Recommendation | ||||||
| Tire Size:20.5/ 23 /25/27 | Max Spoke Tension: 130kgf | |||||
| Weight Limit: 150kg | Max Tire Pressure: 120psi-140PSI | |||||
| Appearance | ||||||
| Weave: UD / 3K/12k | Finish: Matte / Glossy | |||||
