Description
Description
Basic
Item #:CBR27.5AS28 Warranty: 2 Years
Material: Toray T700 Carbon Fiber Rim Type: Clincher / Hookless

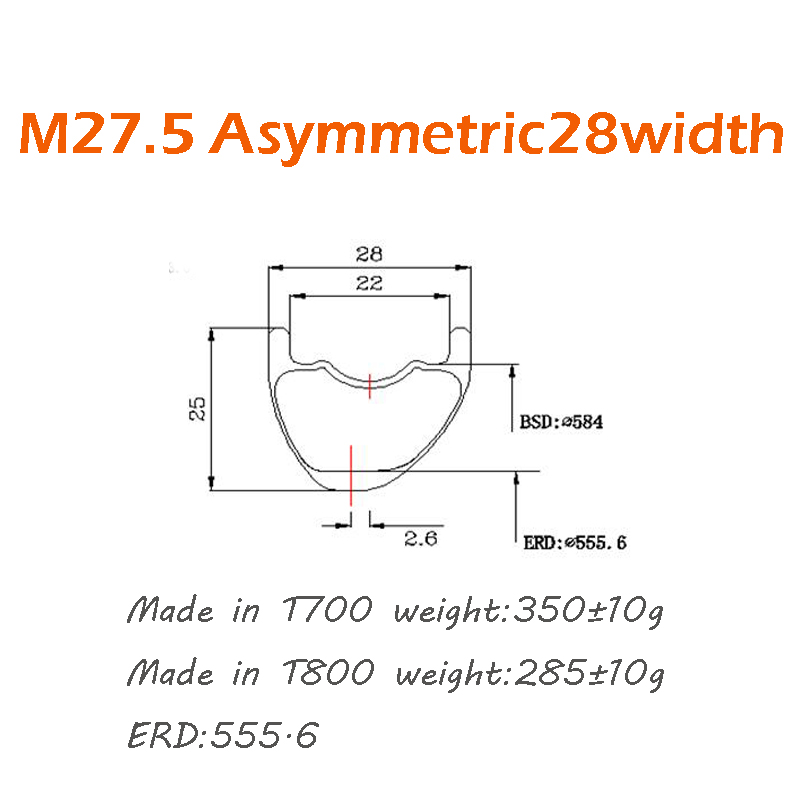

Dimension
Size: 27.5/650B BSD: 584mm
ERD: 555mm Spoke Holes Offset: 3.0mm
External Width: 28mm Spoke Hole Dia.: 4.5mm
Depth: 25mm Internal Width: 22mm
Valve Hole Dia.: 6.5mm (Presta) Made in T700 Weight: 350g
Made in T800 weight:285g
Assembly Hole Dia.: 7.5mm
Hole count: 28, 32, 36 Rim Lip Thickness: 3.0mm
Recommendation
Tire Size: 1.5" ~ 2.2" Max Spoke Tension:130kgf
Weight Limit: 120kg Max Tire Pressure: 70psi
Appearance
Weave: UD / 3K / 12K Finish: Matte / Glossy
Application
XC / AM / Enduro ...
Tubeless Compatible
Tubeless Compatible: This function allows you to run tubeless perfectly.
Overall System
AIO System: The AIO (all in one) system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight;
