| Basic | ||||||
| Item #: CBR24inch-507-30width | Material: Toray T700 Carbon Fiber | |||||
| Rim Type: Clincher | Warranty: 2 Years | |||||

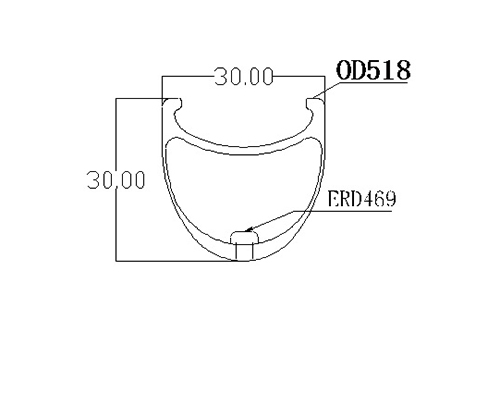

| Dimension | ||||||
| Size: 24inch | BSD: 518mm | |||||
| ERD: 469mm | Spoke Hole Dia.: 4.5mm | |||||
| depth: 30mm | width:30mm | |||||
| Valve Hole Dia.: 6.5mm | weight:410+/-15g | |||||
| Assembly Hole Dia.: 7.5mm | Hole count: 10-36 | |||||
| Recommendation | ||||||
| Tire Size:1.35-1.75 | Max Spoke Tension: 130kgf | |||||
| Weight Limit: 150kg | Max Tire Pressure: 120psi | |||||
| Appearance | ||||||
| Weave: UD / 3K/12k | Finish: Matte / Glossy | |||||
