| Basic | ||||||
| Item #: CBR20inch-406-23width | Material: Toray T700 Carbon Fiber | |||||
| Rim Type: Clincher | Warranty: 2 Years | |||||

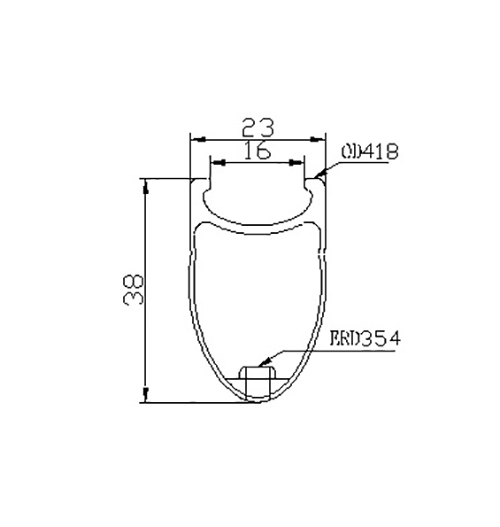

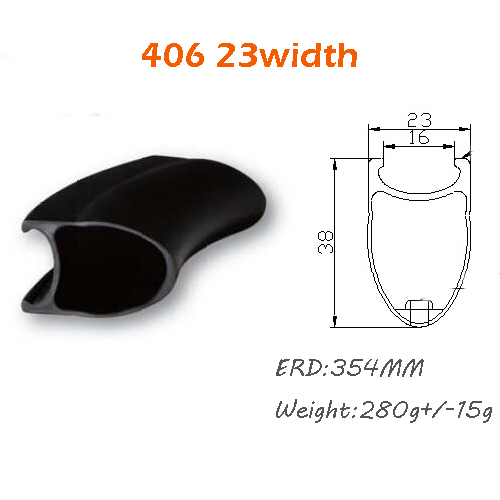

| Dimension | ||||||
| Size: 20inch | BSD: 418mm | |||||
| ERD: 354mm | Spoke Hole Dia.: 4.5mm | |||||
| depth: 38mm | width:23mm | |||||
| Valve Hole Dia.: 6.5mm | weight:280+/-15g | |||||
| Assembly Hole Dia.: 7.5mm | Hole count: 10-36 | |||||
| Recommendation | ||||||
| Tire Size:20*1-3/8 | Max Spoke Tension: 130kgf | |||||
| Weight Limit: 150kg | Max Tire Pressure: 120psi | |||||
| Appearance | ||||||
| Weave: UD / 3K/12k | Finish: Matte / Glossy | |||||
